PETRO High Flow Bypass Filter for gear boxes, lubrication and hydraulic systems

PETRO High Flow Particulate Filter for gear boxes, lubrication and hydraulic systems

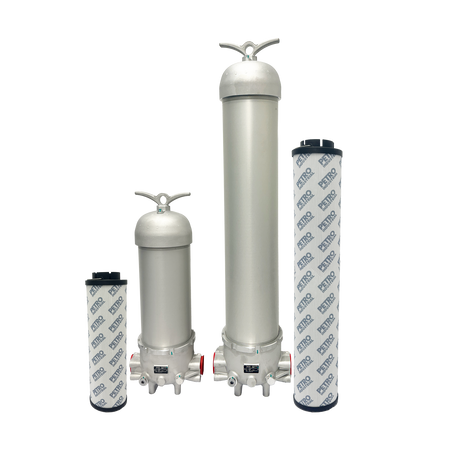

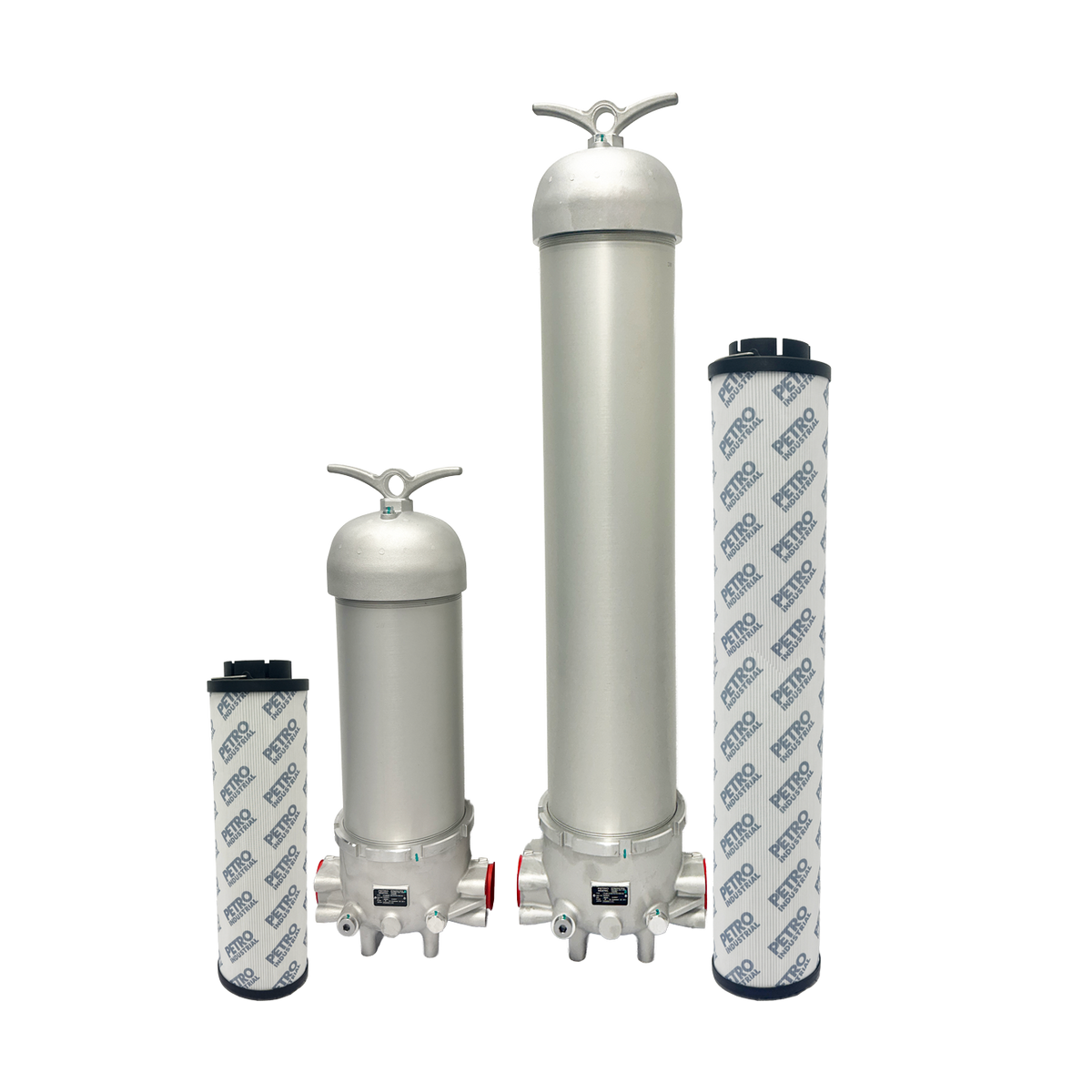

PETRO High Flow 6µm and 10µm particulate filter housing and element assembly. Nominal pressure 25 bar (360 psi), nominal size up to 1100.

Options:

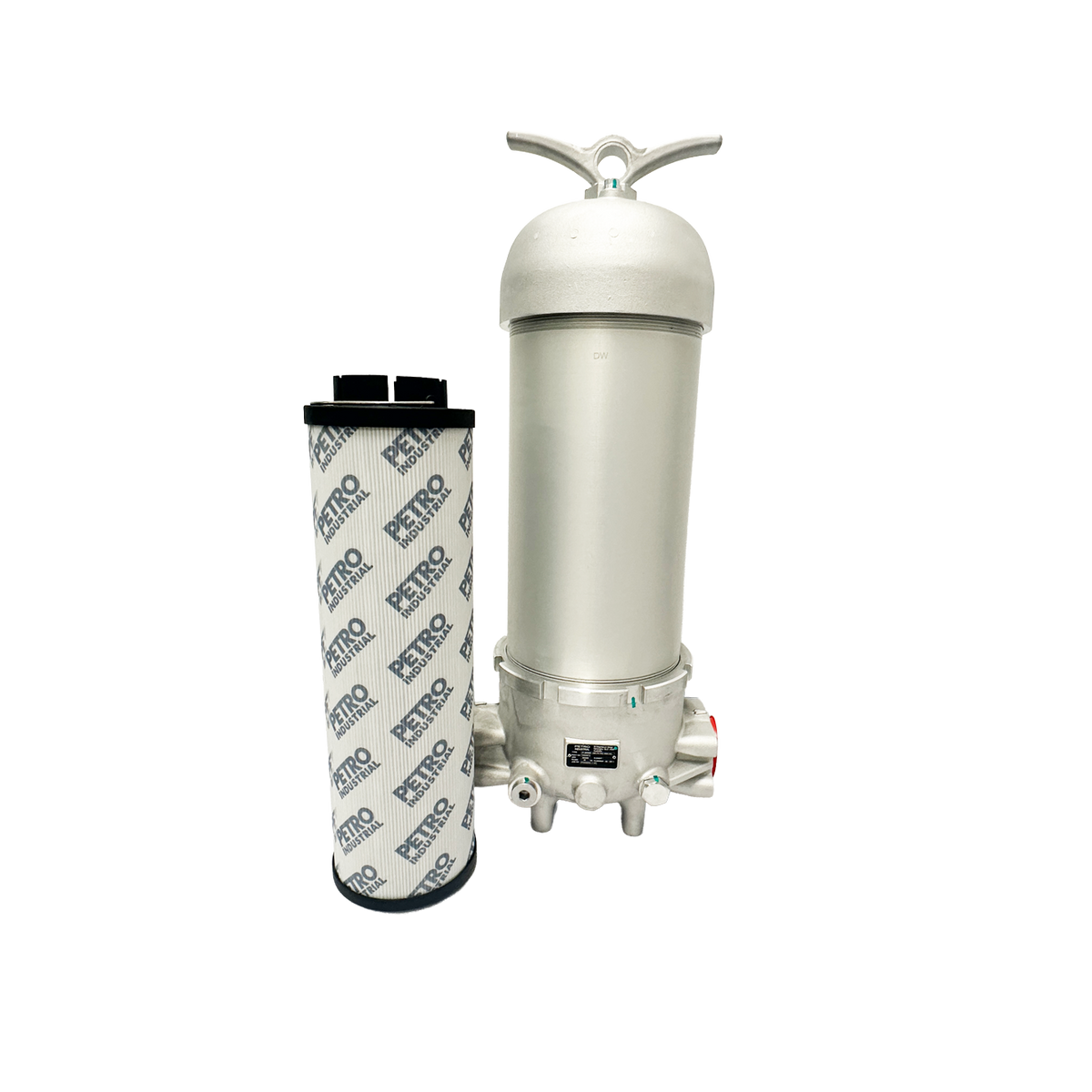

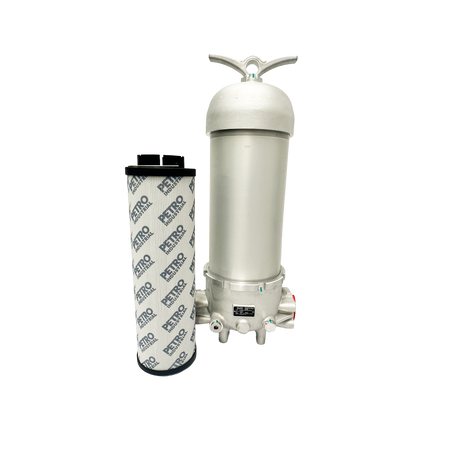

1. High Flow 6µm - PI-HF650 c/w SMX6-650 Element
2. High Flow 10µm - PI-HF650 c/w SMX10-650 Filter Element

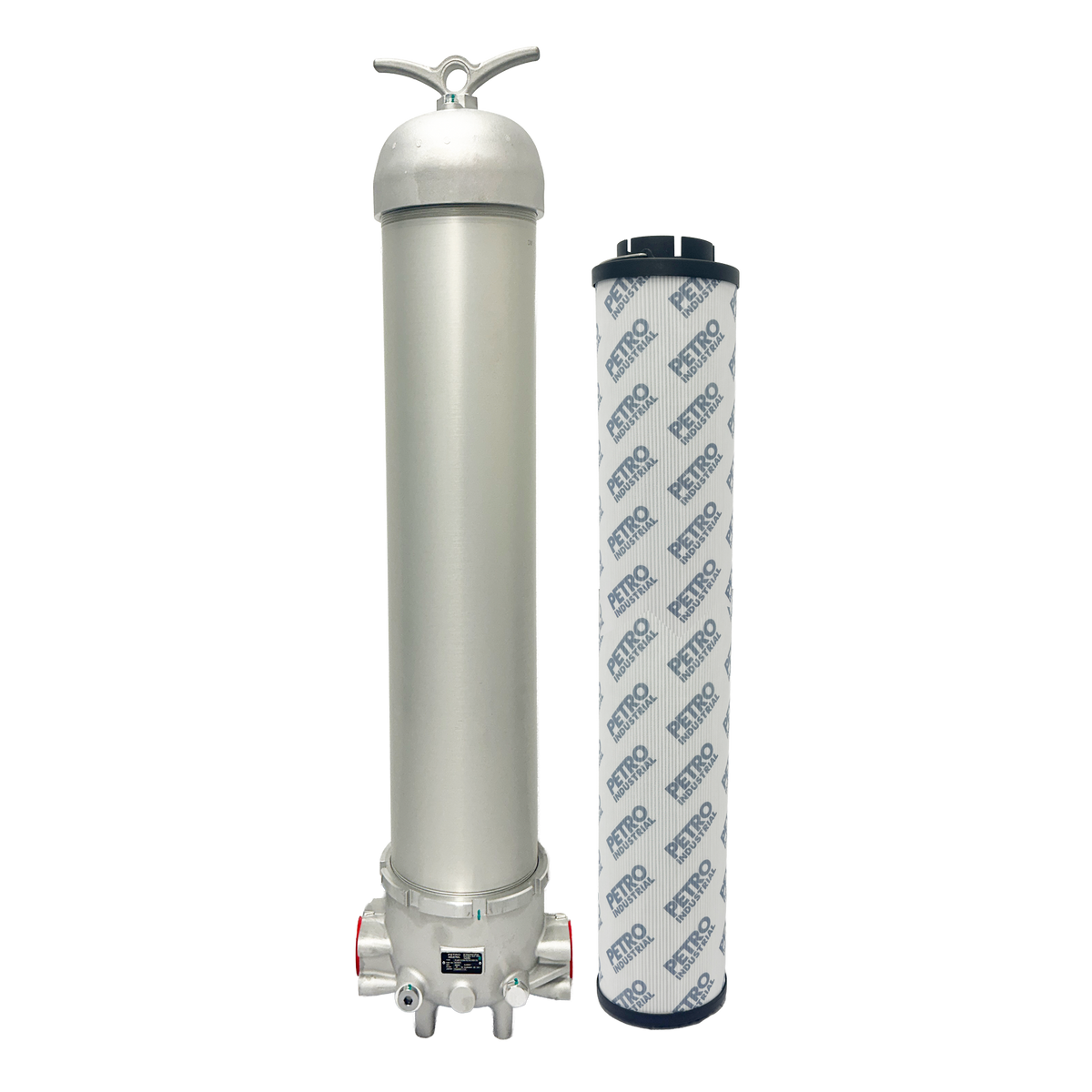

3. High Flow 6µm - PI-HF1100 c/w SMX6-1100 Filter Element
4. High Flow 10µm - PI-HF1100 c/w SMX10-1100 Filter Element
5. Option to add VI4 Differential Pressure Indicator ( 77938582)
6. Option to add VI3 Differential Pressure Indicator( 77938582) and EI3 Electrical Differential Pressure Sensor (PI-EI3097)

• Provided for pipe installation
• Modular system for optimal filter selection
• Low space requirements due to compact design
• Weight optimised design
• Minimal pressure drop due to the high efficiency and the volume flow optimised design of parts
• Visual/electrical maintenance indicators
• Non-return valve in the filter head
• Drain on dirt side
• Venting on filter cover
• Equipped with highly efficient Filtration Group premium filter elements
• Guaranteed retention rates according to
• ISO 16889 multipass test
• Defined cleanliness classes according to ISO 4406
• High dirt holding capacity
• Easy to service
• Worldwide sales and service

Download Data Sheet
